FULL FEATURE DESCRIPTIONS:

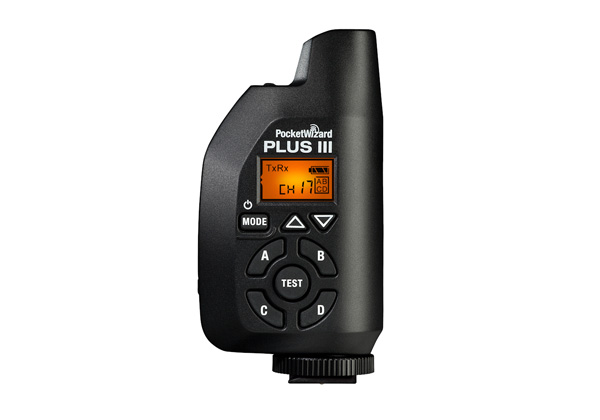

With the PocketWizard Plus III Transceiver’s 32 channels (16 standard plus 16 Quad-Zone Triggering channels), finding an open channel is easy. Photographers working in a busy environment, including wedding halls, sports arenas or busy studios, can dial in a channel as simply as pushing a button.
Selective Quad-Zone Triggering keeps you shooting photos, not running back and forth to your lighting or cameras. Without leaving the camera position, you can wirelessly activate or deactivate your remote flashes or cameras in 4 separately controllable zones: A, B, C, or D. This is ideal when using multiple lighting setups or turning remote cameras on and off as needed. The Plus III Transceiver is also the perfect partner for the MultiMAX® radio, which also features 32 channels and four zones.
Auto-Sensing Transceiver Technology
With our patented Auto-Sensing Transceiver technology, the Plus III Transceiver is one smart radio. When set to TxRx, it will instantly and intelligently switch between transmitter and receiver modes as needed for greater flexibility on the job. The Plus III may be set to transmit (Tx) or receive (Rx) only when needed.
Two-Stage Remote Camera Triggering
The Plus III Transceiver is the perfect solution for remote camera triggering. The unique two-stage TEST button on the Plus III works just like the shutter release button on your camera. Press it halfway and your remote camera wakes up to meter and focus. Press TEST all the way to take your photo. When released, your remote camera will return to sleep mode normally; a real battery saver. Using the right cables, you can have a remote camera follow the camera in your hands – half press your hand-held camera’s shutter release and the remote camera meters/focuses, full press and both cameras trigger away. This feature requires a receiving Plus III, MultiMAX or FlexTT5, and ACC Pre-Trigger cables.
Our Auto-Sensing Transceiver technology lets you trigger a remote camera in sync with remote flashes using only 3 PocketWizard radios: the one in your hands, a Plus III cabled to your remote camera, and the one connected to your remote flash. The Plus III cabled to your remote camera will receive a radio signal and trigger the camera’s motor drive, then switch to transmit mode and trigger your PocketWizard-connected remote flashes, all automatically. Start the sequence by simply pressing the TEST button of any PocketWizard Transmitter in your hands. Remote cameras require motor drive cables.
Long Range Capability
Under ideal conditions, the Plus III Transceiver works up to 500 meters (1600 feet). Shooting environments are seldom ideal, so the Plus III incorporates two range extending modes for the challenges of the real world. Use Long Range Mode (LR) to nearly double the effective triggering distance in almost any environment. In very challenging environments or extremely long working ranges, place a Plus III in Repeater Mode (RP) between your transmitter and receiver to repeat the signal and complete the connection. These modes take a little extra time to do their jobs, so maximum X-sync may be reduced when firing remote flashes in LR or RP modes.
High Speed Receive
Normally, the Plus III is capable of triggering lights or cameras at a sustained rate of up to 12 frames per second (FPS), a standard for PocketWizard radios. Set the Plus III to High Speed Receive Mode (HSR) and trigger at rates up to 14.5 FPS, beyond the capability of most of today’s cameras. This mode can also help high FPS triggering compatibility for any flash.
Simple User Interface
The Plus III has an intuitive user interface where all channels, zones and modes can be easily engaged via a soft-touch keypad, and displayed on an easy-to-read backlit 2.5cm (1″) LCD display. When you’re working in dark environments, simply press any key other than TEST to Illuminate the LCD.
Ultra-fast microprocessors allow for reliable sync speeds of 1/250 for focal plane shutters and 1/500 for leaf shutters.
On your camera, the Plus III slides into the hot shoe with no cables required. For your remotes, it features one do-it-all sync port. The industry-standard miniphone (3.5mm or 1/8″) connector is much more reliable than a PC connection, so each Plus III comes complete with a miniphone-to-miniphone cable, and a miniphone-to-phono (1/4″ or 6.3mm) adapter for triggering the majority of modern flashes. And it even comes with a miniphone to locking PC cable for triggering some remote speedlights, or for using your Plus III on-camera when you can’t put it in a hot shoe. Other miniphone connector cables are available for major brands of lighting equipment in a variety of lengths. Dedicated remote camera triggering cables are also available for popular camera systems.
The Plus III is compatible with all PocketWizard transmitters and receivers of the same frequency* including PocketWizard-enabled photo gear from Profoto, Dynalite, Norman, Photogenic and Sekonic light meters. The PocketWizard wireless system allows for total flexibility with whatever lights or cameras you may be working with. (*FCC and CE PocketWizard radios work on different frequencies)
Sleek New Design
The Plus III features a durable, side profile design with an unobtrusive, internal antenna minimizing visual obstruction between you and your subject. By utilizing an internal antenna, there’s no chance to kink or break it when on location. The total height of the transceiver and antenna is less than 5.25 inches, and it weighs only 4 ounces, including batteries.
Two AA (IEC:LR6) batteries run the Plus III for about 50 hours. External power can be supplied to the standard Mini-B USB port. The captive battery door won’t get lost.
Up to Date
The Plus III is firmware-upgradable. Simply connect it to a PC or Mac and download and install the latest firmware with the PocketWizard Utility software.
